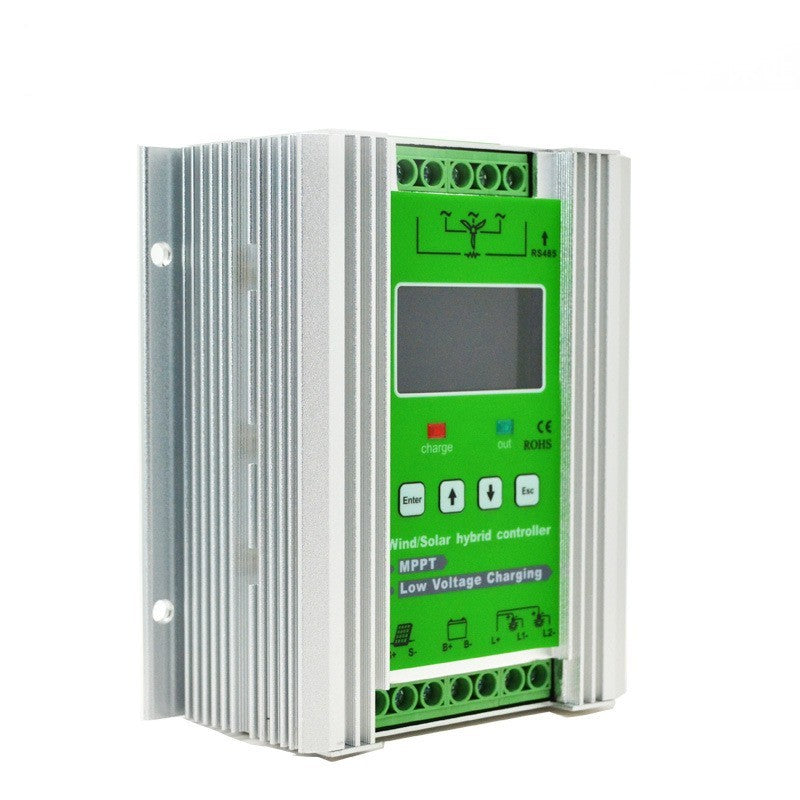

12V24V 300W Street Lamp Wind Wind Complementary Controller

Product information:

Applications: charger controller, solar system controller, solar workstation
Product name: Wind and solar hybrid controller system for lithium lead acid battery
DC conversion efficiency:>98%
Protection grade: IP30

This type controller is 12/24/48V system voltage automatically reorganize, the system voltage depends on your battery bank, for example, if your battery bank is 24V, then your the system voltage is 24V, in the same way, DC load Rated Voltage is 24V.

Below is the matching recommendation for these different system voltage:

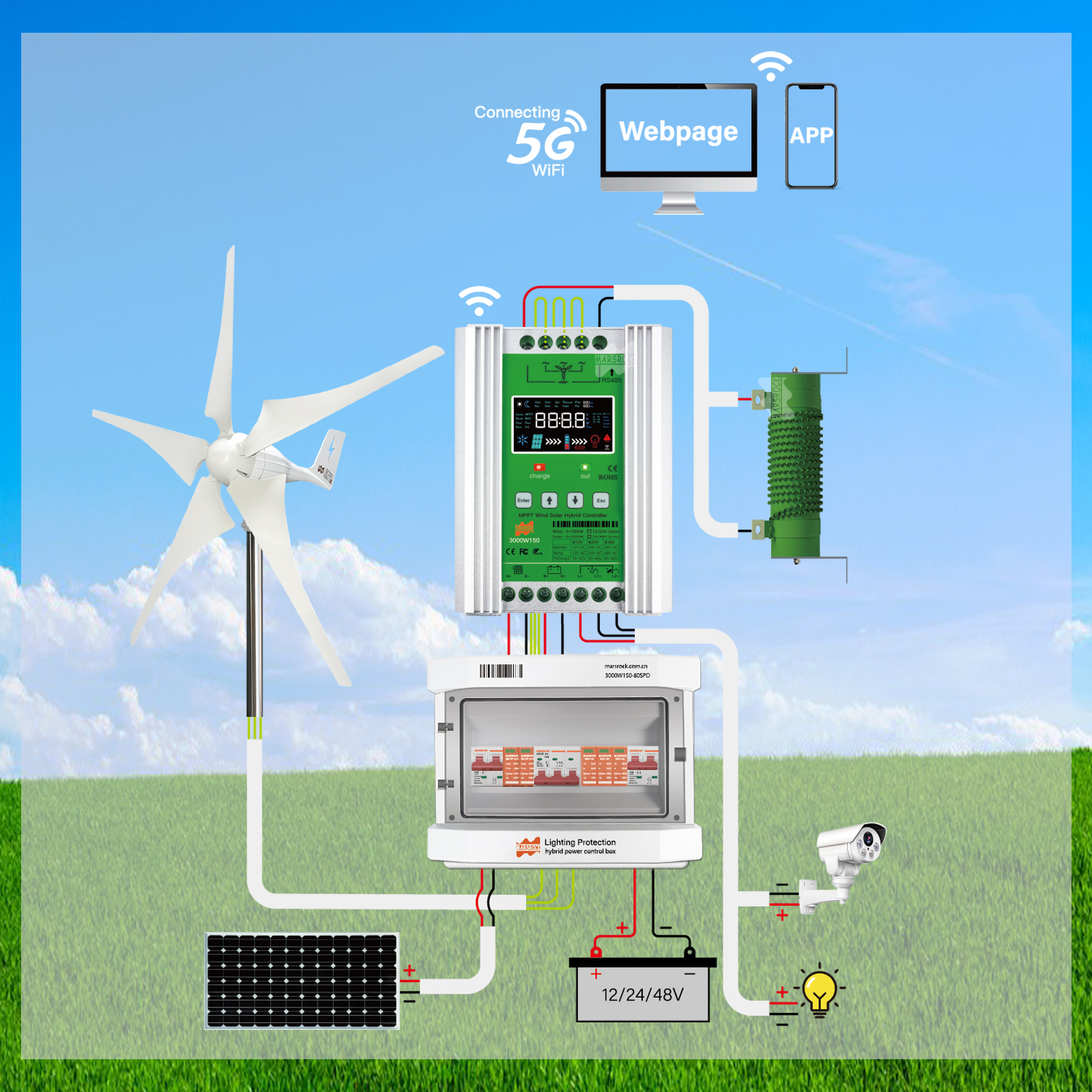

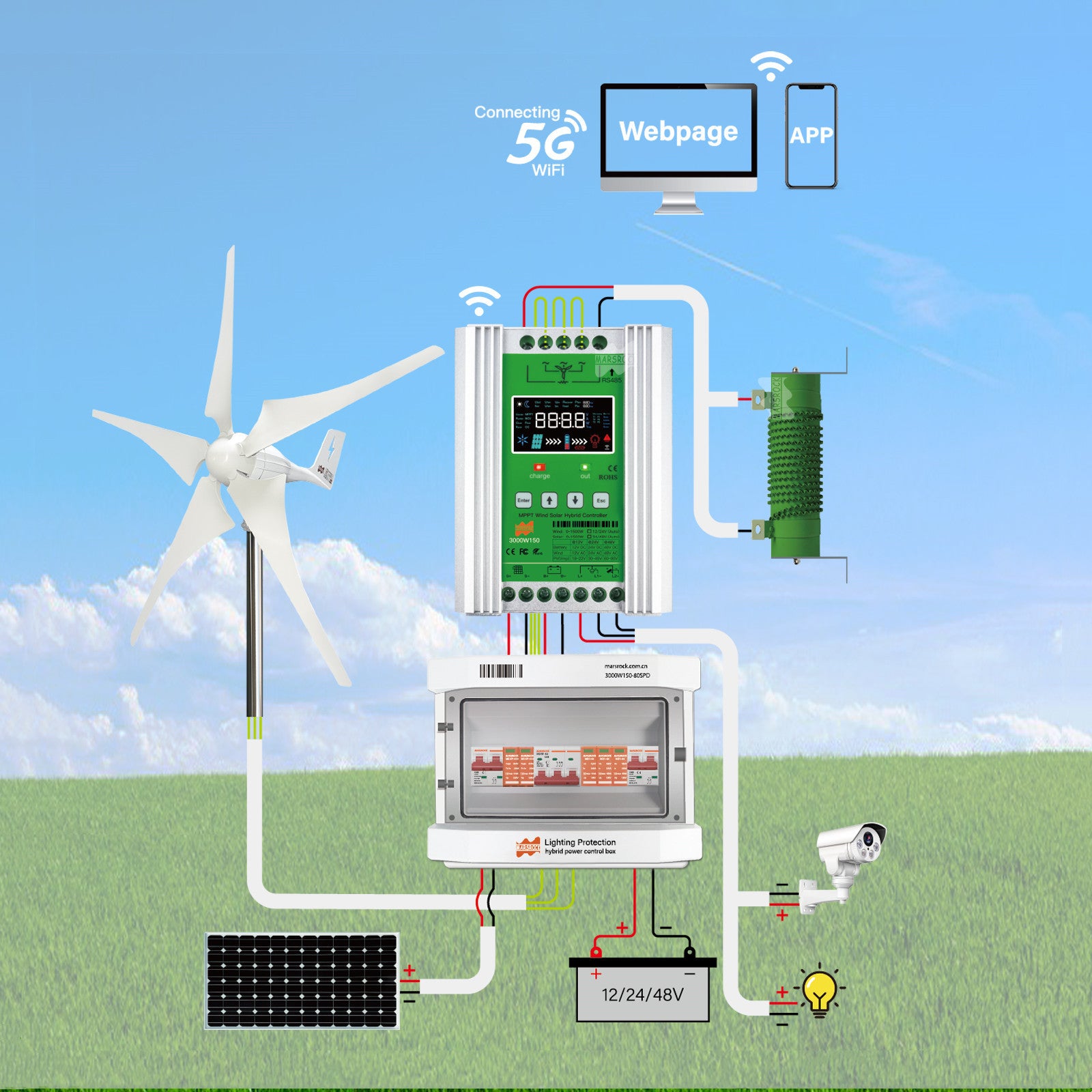

12V battery bank: 12V wind generator + 18V Vmp solar panel array

24V battery bank: 24V wind generator + 36V Vmp solar panel array

Below is clarification for hybrid controller model:

Eg. 2000W100

Means 1000W Wind + 1000W Solar

Means The system can support Max 1000W wind generator and 1000W solar panel array.

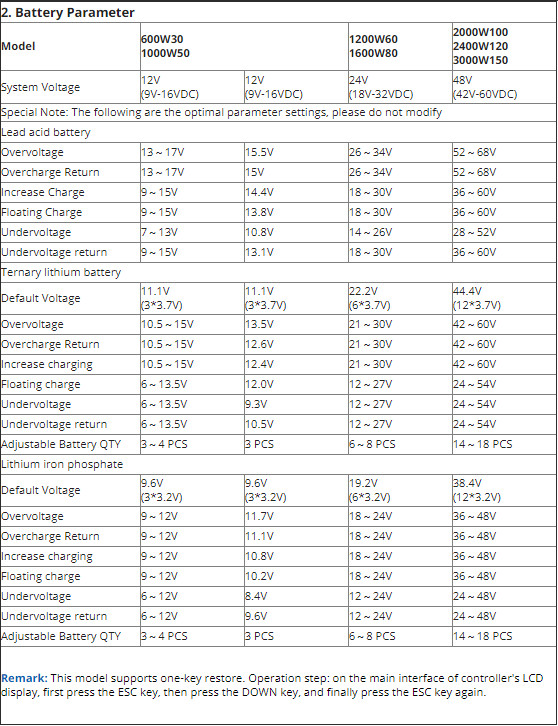

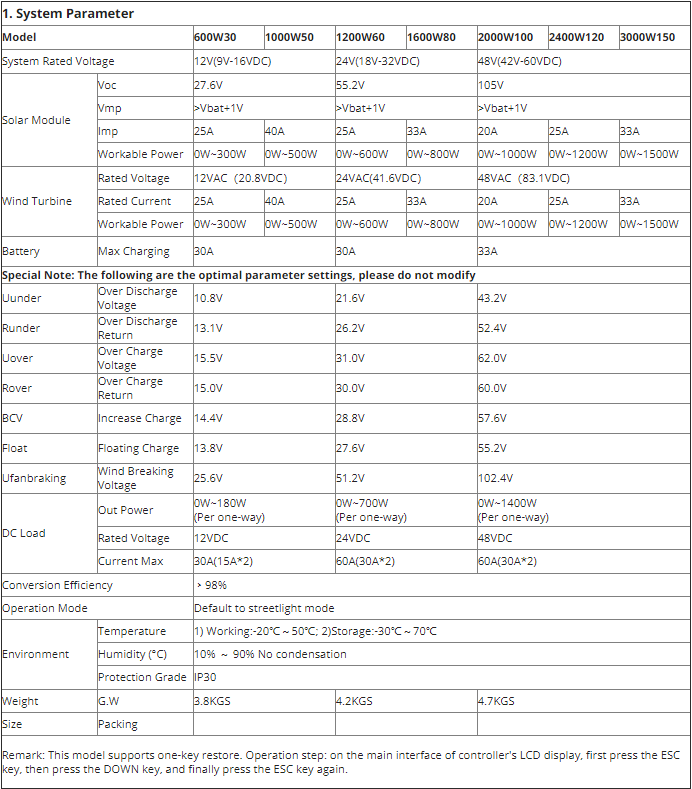

If you need the latest parameter sheet, please share us your email, we will sent to you.

*Note1: For our Deluxe version hybrid controller,The default is lead-acid battery, you can enter the Bat-T-N battery type setting interface to change it.

*Note2:  For our Deluxe version hybrid controller, we have two system voltage version, 12/24V or 12/24/48V automatically reorganization*.

Features:

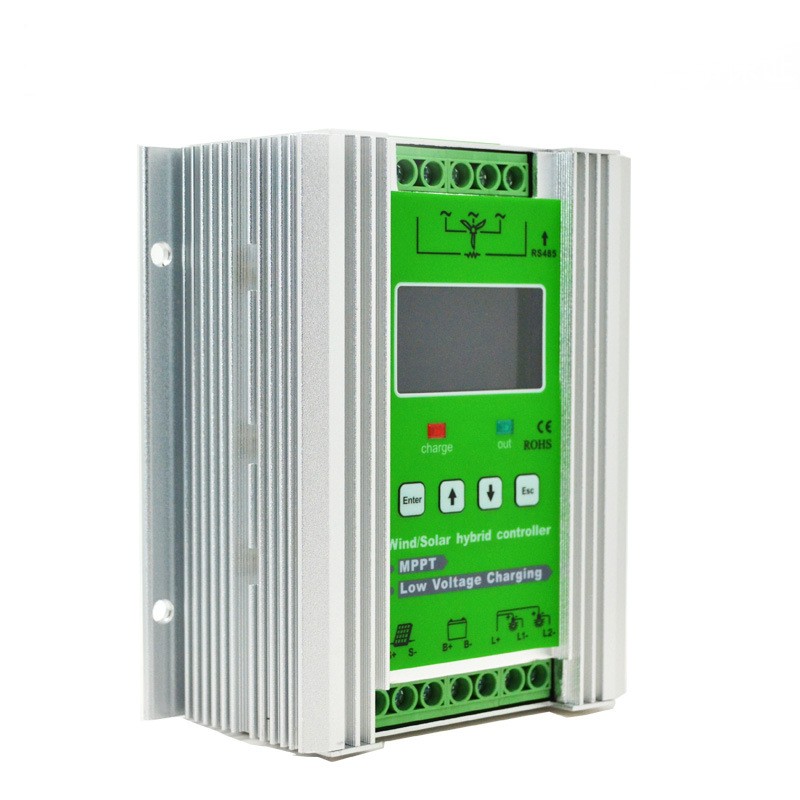

(1) The display adoptscolor screen design, the display information is more comprehensive, the display interface is clearer, and the 4-key man-machine interface and operation setting are more convenient;
(2) The MPPTcontrol algorithm used for Wind charging ensures MPPT charging at low wind speed;
(3) Wind three-stage charging mode: MPPT charging; lifting charging; floating charging.
(4) Solar three-stage charging mode: CC (constant current); lifting charging; floating charging.
(5) 12V/24V battery system automatically recognizes, or 12V/24V/48V battery system automatically recognizes (Optional).

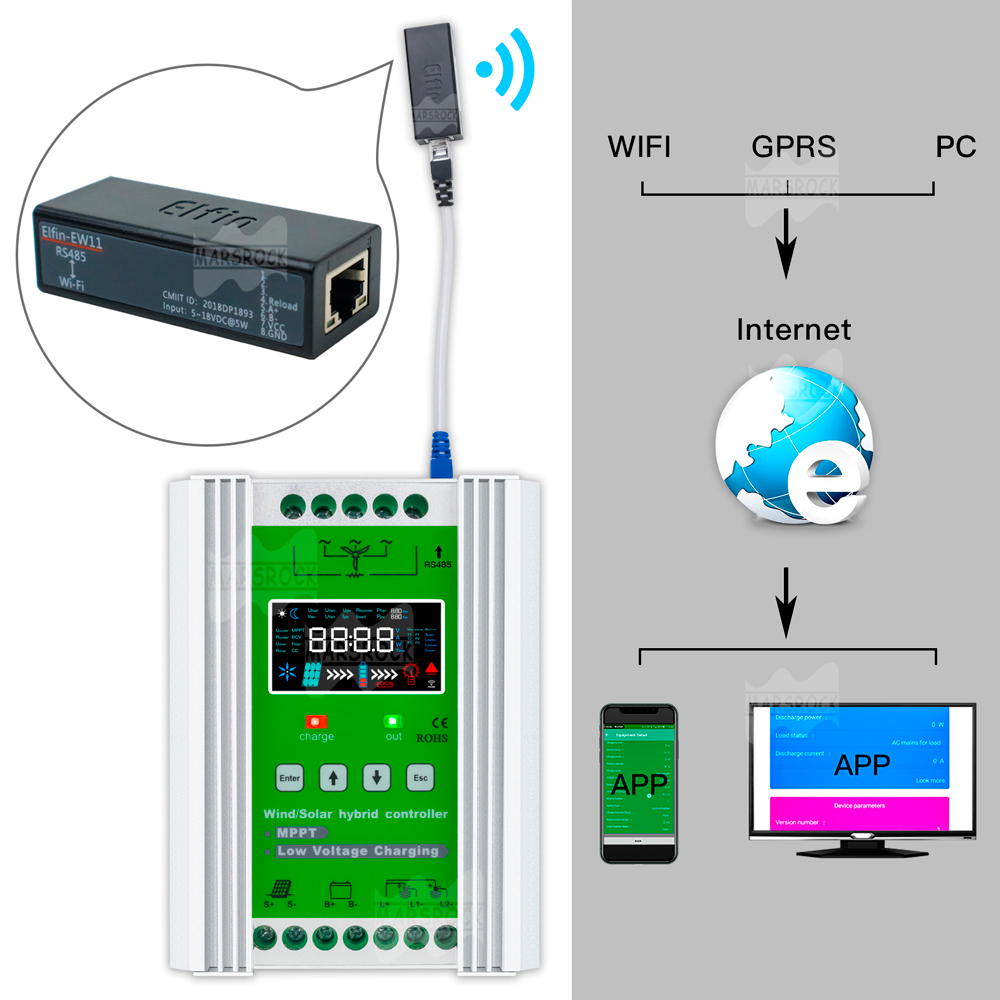

(6) RS485 communicationcan provide communication protocol to facilitate unified management and secondary development for customer;
(7) The controller operating parameters can be viewed and set through themobile phone APP( Optional );
(8) The controller has comprehensive protection functionssuch as overcharge, over discharge and overload;
(9) Four battery types charging modec an be selected for operation: Lead-acid battery, Ternary lithium battery, Lithium iron phosphate, Custom ;
(10) The controller has various load control modes, the load has two outputs, and the output power and time can be set;
(11) The controller has wide adaptability, adaptive day and night.

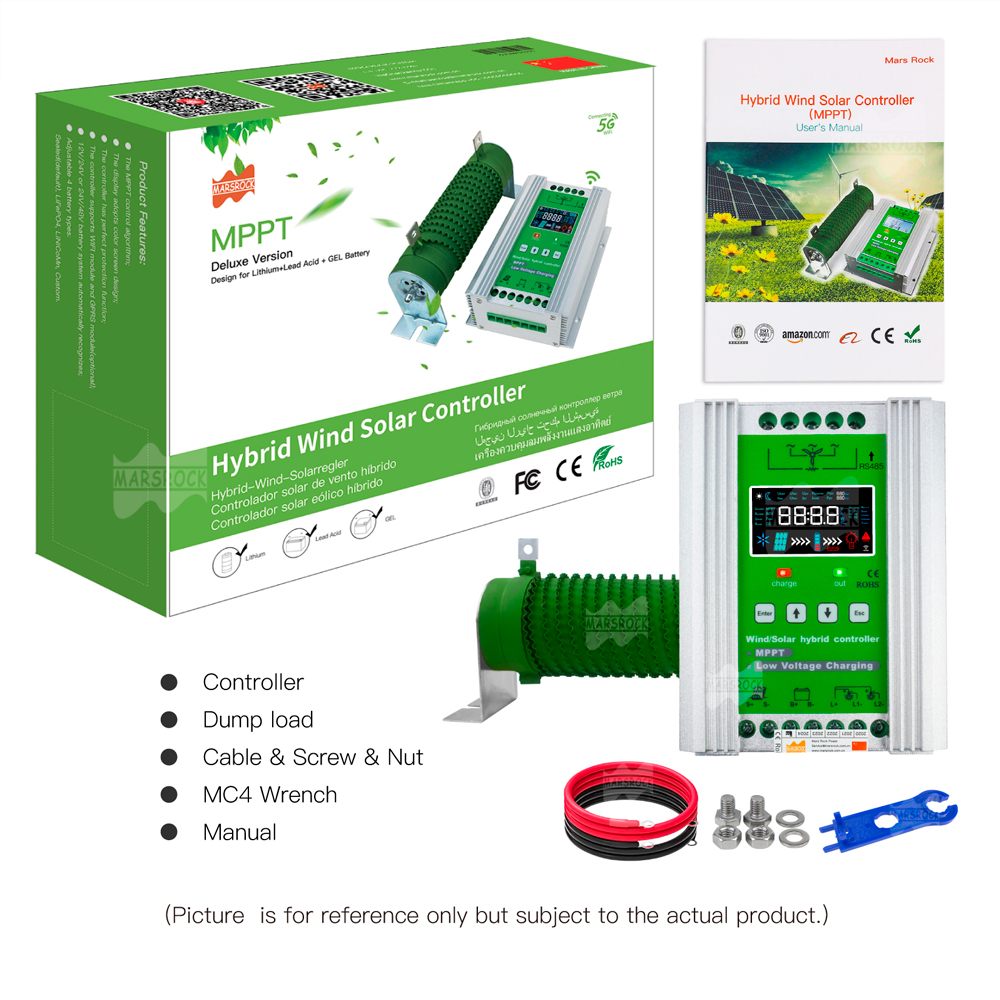

Packing list:

1× controller
