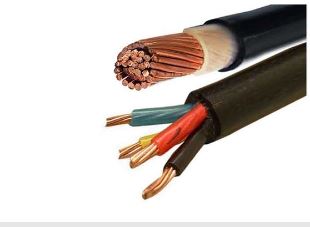

BS5467 Cu/XLPE/PVC/AWA/PVC 0.6/1kV XLPE Insulated Power Cable for Fixed Installation

6 sold in last 16 hours
BS5467 Cu/XLPE/PVC/AWA/PVC 0.6/1kV XLPE Insulated Power Cable for Fixed Installation Place of Origin: Shanghai, China Brand Name:...
Vendor: Kaztrading
SKU: BS5467 SHANCABLE
Availability: Many In Stock
Product Type: Стройматериалы
$0.00
$0.00
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $0.00
10 customers are viewing this product

Free Shipping

Free shipping on orders is available at certain conditions

Estimated timing to be delivered on upon agreed date.

Free Returns

Learn More.

Packed And Shipped (not delivered) Within 5 - 7 Days

BS5467 Cu/XLPE/PVC/AWA/PVC 0.6/1kV XLPE Insulated Power Cable for Fixed Installation

BS5467 Cu/XLPE/PVC/AWA/PVC 0.6/1kV XLPE Insulated Power Cable for Fixed Installation

$0.00

BS5467 Cu/XLPE/PVC/AWA/PVC 0.6/1kV XLPE Insulated Power Cable for Fixed Installation

$0.00

BS5467 Cu/XLPE/PVC/AWA/PVC 0.6/1kV XLPE Insulated Power Cable for Fixed Installation

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJV

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week



Detailed Product Description

Conductor Material:: Copper, IEC60228 Conductor Shape:: 1mm² Up To 630mm² Circular
Insulation:: XLPE (Cross-linked Polyethylene), IEC60502 Outer Sheath:: PVC, IEC60502
Rated Voltage Uo/U (Um):: 600/1000V, BS5467 Installation Type:: Outdoor Direct Burial
Corporation: Shenghua Group Brand: Sh Cable



Cable Application

Cu/XLPE/PVC/AWA/PVC power cable may be used for fixed installation indoors and outdoors in cable ducts or directly in the ground.

Technical Information

Conductor Material: Copper, IEC60228
Conductor Shape: 50mm² up to 400mm² Circular
Conductor Flexibility: Stranded class 2
Outer Sheath: PVC, IEC60502
Inner Sheath: PVC, IEC60502
Insulation: XLPE (Cross-linked Polyethylene), IEC60502
Armour Type: Aluminium wires
Colour: Black
Lead Free: Yes
Rated Voltage Uo/U (Um): 600/1000V, BS5467
Installation Temperature: Minimum: 0°C Maximum: 60°C
Installation Type: Outdoor Direct burial
Operating Temperature: Minimum: -15°C Maximum: 90°C
Short-circuit Maximum Conductor Temperature: 250°C
Flame Retardant: IEC 60332-1 and BS EN 50265-2-1
Bending Radius: 50mm² up to 1000mm² = 6 x Ø
