Description

 General Information

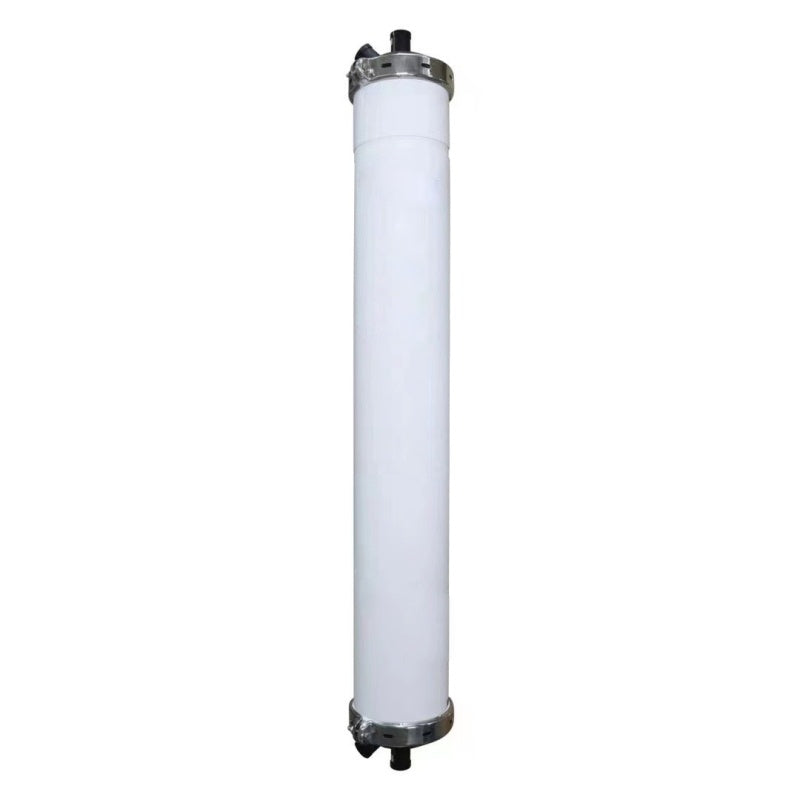

TFTGX-80 is manufactured as the direct equivalent, replacement, alternative, retrofit and analogue to Koch TARGA II 10072-35 hollow fiber ultrafiltration cartridge.
TaFlux TGX series UF membrane modules TFTGX-80 are designed and manufactured as equivalents, which are used for production of process, potable water and wastewater. Major applications are the filtration of surface water, potable water, industrial wastewater and seawater.
TARGA II 10072-35 equivalent ultrafiltration modules use new-generation naturally hydrophilic PES hollow fiber ultra-filtration membrane with excellent performance. The mode of operation is feed-and-bleed with a minor cross flow or dead-end with regular backwash (with filtrate only) and chemically enhanced backwash..

Features

  • Uniform pore size of 0.02 μm
  • New-generation naturally hydrophilic polyethersulfone membrane
  • High performance and very good anti-fouling characteristic
  • Typical filtrate quality SDI < 3, turbidity < 0.1 NTU
  • Membrane filtration provides 99.9999% (LOG 6) reduction of bacteria (Pseudomonas diminuta) and 99.99% (LOG 4) reduction of virus (MS2 colifages) by mechanical means.

Advantages

  • High quality raw material
  • High thermal and chemical solvent resistance
  • Less energy needed by extra high permeability
  • High chemical tolerance for cleaning
  • Optimized design with high resistance to fouling
  • Economical equivalent modules for direct replacement of Koch TARGA II 10072-35

Applications

  • Surface water
  • Potable water
  • Seawater desalination
  • Pre-treatment of industrial water

 Specifications

Model

TFTGX-80

Effective membrane area

80.9 m² (871 ft²)

Weight

45 KG (100 lbs)

Membrane material

PES (Polyethersulfone)

Fiber ID/OD

0.9/1.3 mm (0.035/0.051 inch)

Pore size

0.02 μm (100,000 dalton)

Flow direction

Inside-out

Housing material

PVC

Clamp material

Stainless steel

Potting material

Polyurethane resin

End cap sealing

EPDM

Storage Solution

Glycerin with water
Operating and Cleaning Limits

Type of operation

Dead-end flow or cross flow

Design flux (25°C)

 68-150 L/m2·h (40-88 gfd)

Working temperature

1-40°C (34-104°F)

Maximum working pressure (40°C)

3 bar (45 psi)

Maximum trans-membrane pressure

2.1 bar (30 psi)

Maximum backwash trans-membrane pressure

1.7 bar (25 psi)

Backwash flux (25°C)

225-300 L/m2·h (133-176 gfd)

pH range

1.5 - 13

Maximum total chlorine (25°C)

500 ppm @ pH > 10

Typical cleaning total chlorine (25°C)

200 ppm @ pH > 10

Maximum backwash total chlorine (25°C)

50 ppm @ pH > 9
