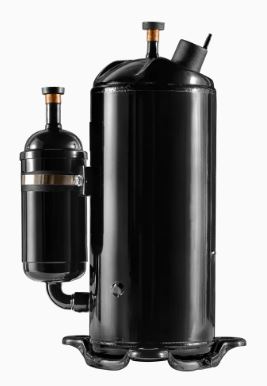

Compressor hermetic rotary GMCC PA150M2A-7FTS1

8 sold in last 10 hours
Compressor hermetic rotary GMCC PA150M2A-7FTS1   The PA150M2A-7FTS1 is a high-performing solution suitable for various AC applications....
Vendor: Kaztrading
Availability: Many In Stock
Product Type: Devices
$0.00
$0.00
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Quote (TBA): Based On RFQ And Commercial Offer
Subtotal: $0.00
10 customers are viewing this product

Free Shipping

Free shipping on orders is available at certain conditions

Estimated timing to be delivered on upon agreed date.

Free Returns

Learn More.

Packed And Shipped (not delivered) Within 5 - 7 Days

Compressor hermetic rotary GMCC PA150M2A-7FTS1

Compressor hermetic rotary GMCC PA150M2A-7FTS1

$0.00

Compressor hermetic rotary GMCC PA150M2A-7FTS1

$0.00
Quote (TBA): Based On RFQ And Commercial Offer

The PA150M2A-7FTS1 is a high-performing solution suitable for various AC applications. With a robust capacity of 3750 W and an impressive coefficient of performance of 3, it ensures efficient cooling and heating performance. The 15 cm3 displacement, coupled with advanced ROTARY technology, guarantees smooth operation.

Featuring a reliable Internal motor protection system and utilizing RB75RS oil, it ensures durability and reliability. The vertical design and compact dimensions of 303 mm height make it easy to integrate into AC systems. It works with R410A refrigerant, with a maximum discharge temperature of 115 ºC.This description is for information purposes only. To confirm the accuracy of the data, please consult the technical data sheet or one of our technicians.

Data Sheet

Capacity

3750 W

COP

3

Displacement

15 cm3

Output

1,25 HP

Phase

1

Refrigerant

R410A

Speed

50 Hz

SAE/ODF

ODF

SG

NO

Tandem

NO

Inverter

NO

EVI

NO

HI-COP

NO

Technology

ROTARY

pressure

HT

Motor protection type

Internal

Design

VERTICAL

CE

YES

UL

NO

Application

AC

Type of oil

RB75RS

PED

I

Motor type

SINGLE PHASE PSC

Height

303 mm

Sound level

71 dB

LRA

34 A

Rated current

5,55 A

Diameter

130 mm

Oil Charge

440 ml

Discharge Pressure

3,28 MPa

Suction Pressure

0,89 MPa

Tev

7,2 ºC

Tco

54,4 ºC

Suction Line

13 mm

Discharge Line

9,8 mm

SH

27,8 ºC

SC

8,3 ºC

Capacity Revolutions

48,4 rps

Maximum discharge temperature

115 ºC
